iTEC™ Basic - Operating the Intelligent Total Equipment Control

LX314946-UN-06JUL17

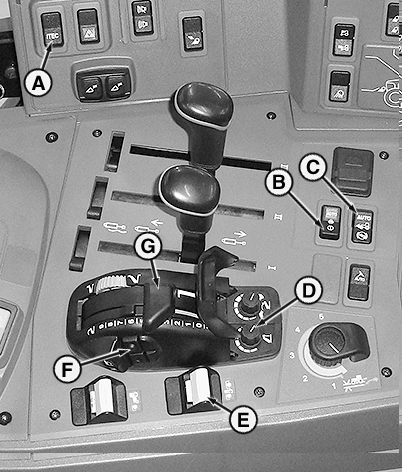

A - iTEC™ Switch

B - Switch, Differential Lock

C - Switch, Front-Wheel Drive

D - Control Knob, Raise Limit

E - Switch, Rear PTO

F - Switch, Hitch

G - Depth Control Lever

With iTEC™ Basic, the following functions can be turned on and off individually or together, automatically by pressing switch (F).

(B) - Differential Lock (only in switch position "permanently ON")

(C) - Front-Wheel Drive (only in Auto position)

(E) - Rear PTO

Switch on the differential lock (B), front-wheel drive (C) (only in Auto position), and/or rear PTO (E) as required (indicator lights are illuminated continuously). Activate iTEC™ Basic by pressing iTEC™ switch (A) (an acoustic signal sounds and the continuous illumination of the indicator lights changes to bright flashing = on for longer, off briefly).

NOTE: If a function is to be integrated in or removed from iTEC™ Basic later on, switch iTEC™ Basic off and reactivate with all desired functions.

Before turning at the headland, the implement is raised by means of switch (F). The differential lock cuts out immediately, the rear PTO switches off when the preset raise height percentage (%) is exceeded, and the front-wheel drive disengages when the implement reaches its transport position. The indicator lights go from bright flashing to dark flashing (on briefly, off for longer). If the implement is raised by means of the depth control, iTEC™ Basic will not react.

NOTE: Automatic shut-off of the rear PTO can be selected either at the point when a percentage (%) of raise height is reached, or when transport position is reached. To do this, access diagnostic address “SMB 91” and enter either the desired percentage (%) or enter "0" for shut-off when transport position is reached. See “SMB - Control Software” in Section 300B.

When subsequently lowering the implement, the differential lock and front-wheel drive immediately re-engage; the rear PTO is not activated unless the implement has reached its operating position (indicator lights change from dark flashing to bright flashing).

IMPORTANT: When lowering the implement, functions can only be activated at a ground speed of at least 0.5 km/h (0.31 mph).

NOTE: Automatic switch-on of the rear PTO can also be selected at the point when the implement drops below a preset percentage (%) of raise height. To do this, access diagnostic address “SMB 90” and enter either the desired percentage (%) or enter "0" for switch-on when working position is reached. See “SMB - Control Software” in "Operation and Entering Diagnostic Addresses with Digital Display (Customer Level)", Section 300B.

If iTEC™ Basic is turned off by means of iTEC™ switch (A), all automatic functions will be canceled (an acoustic alarm sounds and the indicator lights go from bright flashing to continuous illumination, or they go out completely).

NOTE: Front-wheel drive (B) can be set for continuous operation at any time, regardless of iTEC™ Basic (e.g. for turning at the end of steep, wet fields). If the front-wheel drive switch is reset to the Auto position, the front-wheel drive function is integrated in iTEC™ Basic again.
