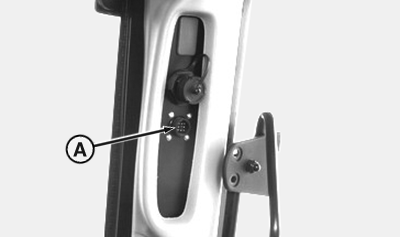

ISOBUS Socket in Cab

(A) — Socket in acc. with ISO Standard 11783

LX314956-UN-05JUL17

Cab Frame, Rear

Pin ..............	7	9
Protected ..............	10 A	Gnd
Power at 12 V ..............	120 W	—
Active ..............	Ignition ON	—

At the socket, a joystick or monitor of an ISOBUS implement can be connected.
