Switching the Front PTO

CAUTION: Always disengage the PTO when not in use.

CAUTION: High-inertia implements do not come to a standstill the moment a PTO is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

LX314933
LX314933-UN-30JUN17

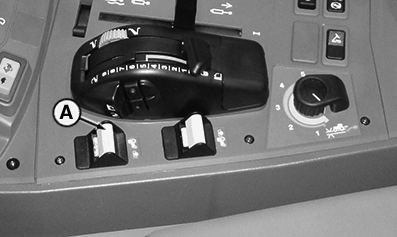

Tractor with Cab Shown

LX314934
LX314934-UN-30JUN17

A - Front PTO Switch

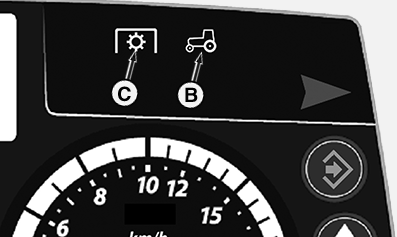

B - PTO Indicator Light

C - Front PTO Indicator Light

  1. To switch on the PTOs, press switch (A) down and then forward.

  2. The PTO starts to rotate and indicator lights (B) and (C) light up.

  3. The current speeds of the PTOs are displayed on the PTO page of the digital display.

  4. To switch off the PTOs, pull switch (A) back.

  5. Indicator lights (B) and (C) go out.

NOTE: If the engine is shut off and then restarted while the PTO is running, the PTO will not operate.

To continue working, disengage the PTO and engage it again.
