Rear PTO — PTO Shield

TS276
TS276-UN-23AUG88

CAUTION: Remove protective cap (A) only when a PTO-driven implement is to be attached.

As soon as the implement is removed, re-install protective cap!

LX1053295
LX1053295-UN-21SEP11

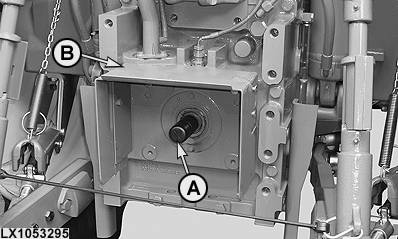

The master shield (B) can be folded up to allow an implement to be connected, but it must be folded down again afterwards. There are various versions of PTO guard that are not shown here.

CAUTION: Never operate PTO unless the master shield is in the position shown. Switch off the PTO before raising the implement.

CAUTION: Before using the PTO, the maximum permissible angle of articulation on the u.j. shaft must be determined. During operation, there must be no contact between the PTO guard and the u.j. shaft. This is particularly important when turning corners.

With Type 3 PTOs (dia. 45 mm, 20 splines), clearance in the area of the PTO shield may be restricted. Bear this in mind when operating; avoid unnecessary damage.

When connecting the PTO, wear gloves.

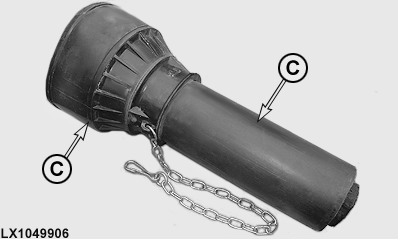

CAUTION: Always put a guard (C) on the u.j. shaft and take action to prevent it from turning with the shaft. Do not operate the universal-jointed shaft unless a guard is installed that covers the PTO shaft completely and does not turn with the shaft.
