Rear PTO — Select Standard Speed (Shiftable PTO)

CAUTION: Engine must be shut off when an implement is being connected.

CAUTION: Before engaging the PTO, make sure that selected PTO speed is correct for the implement attached. Incorrect speed could result in severe damage to the implement.

Danger of accidents!

The PTO is engaged and disengaged as described under Engaging Rear PTO. The PTO has to be disengaged in order to select the standard speed. See “Rear PTO — Connect an Implement” in this Section.

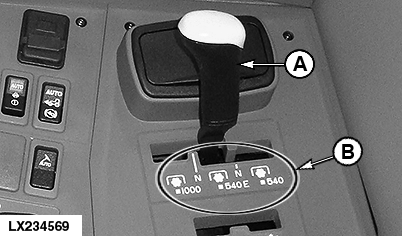

  1. Select PTO speed by means of lever (A) as shown on diagram (B).

    LX234569
    LX234569-UN-12MAR15

    A - PTO Speed Lever

    B - Decal with Shift Pattern for PTO Speed

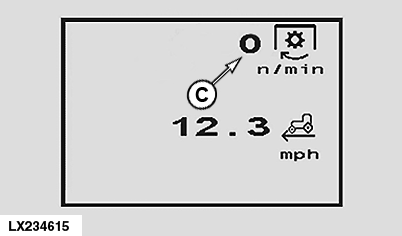

  2. Selected PTO speed is displayed in field (C) or (D) on the digital display.

    LX234615
    LX234615-UN-24MAR15

    LX1056706
    LX1056706-UN-11JUL12

    Speed with PTO Engaged

    C - Speed with PTO Disengaged

    D - Speed with PTO Engaged

OULXA64,0004483-19-20180115
