Economy Front Hitch - Controls

CAUTION: Crushing hazard with possibly fatal consequences.

When working in the area of the hitches, unexpected movements can be triggered. This can cause serious crushing injuries.

Always lower implements first and depressurise the hydraulic system before any repair or maintenance work. Shut down the motor and secure it against being switched on again.

Always lock unneeded control elements against being actuated unintentionally!

LX1057029-UN-08JUL13

LX234541-UN-06MAR15

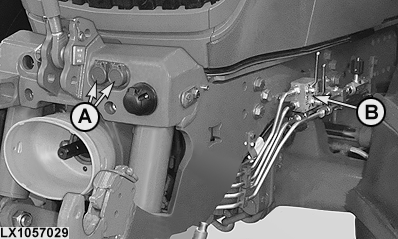

A - Couplers - Selective Control Valve II

B - Front Hitch - Shut-Off Valve

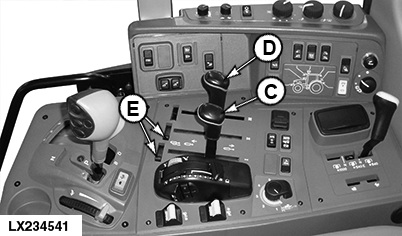

C - Front Hitch (Raise/Lower) - Control Through SCV I

D - Front Hitch Couplers - Control Through SCV II

E - Transport Lock

IMPORTANT: When driving on roads, and whenever the control levers are in neutral position and not needed, use transport lock (E) to lock the control levers.

For more information on controls in the cab, see “Mechanical Selective Control Valves - Controls” in Section 70B.
