Rear Hitch - Use Draft Control

RXA0107204-UN-07APR10

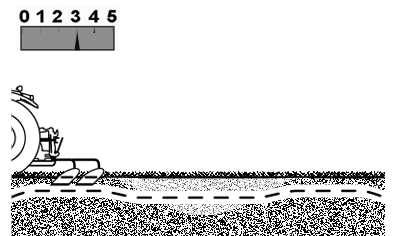

Middle Response Controls Depth Better if Soil Varies

RXA0107203-UN-07APR10

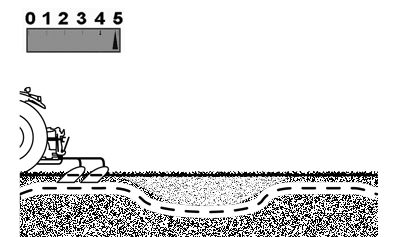

High Response Causes More Depth Variation If Soil Varies

RXA0107205-UN-07APR10

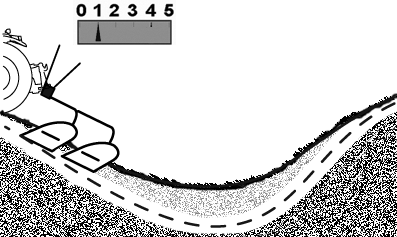

Low Response Causes More Depth Variation in Rolling Terrain

LX314969-UN-11JUL17

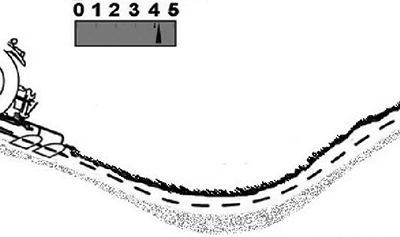

Higher Response Controls Depth Better In Rolling Terrain

The draft control is used to maintain the operating depth of tillage equipment without float function in rolling terrain.

The draft control prevents the height and tilt of the tractor, as well as sinking rear wheels, from causing the implement to penetrate the soil too far.

If the soil density/resistance varies, higher responsiveness settings cause greater fluctuations when the operating depth is regulated. Best setting depends on implement type and field conditions.

• Higher values provide more/faster draft response.

• Lower values provide less/slower draft response.

Recommended setting values for the draft/depth control, depending on the implement type:

Integral Field Cultivator	4—5
Integral Moldboard Plow	3—5
Semi-Integral Moldboard Plow	2—4
Integral Chisel Plow	2—4
Integral Ripper/Subsoiler	1—3

The setting for the draft/depth control changes the draft responsiveness only. Use depth control lever of the hitch to control/change operating depth.

NOTE: Low draft response settings may slow drop rate of some implements. To make the implement penetrate the soil faster, hold the depth control lever in the front click position. Hitch lowers at the drop rate selected.
