Rear Hitch - Set the Depth Control Stop

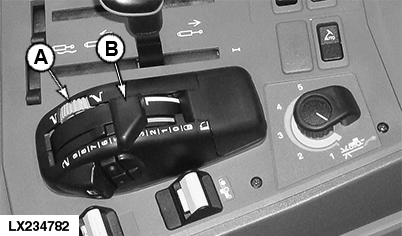

LX234782-UN-25NOV15

Press down the depth control stop (A) and set the desired operating depth.

After the implement has been raised, the same operating depth will be reached the next time it is lowered with depth control (B) (noticeable resistance).
