Rear Hitch - Adjust the Rate of Drop

CAUTION: Risk of injury due to implements being lowered too quickly.

If implements are being lowered too quickly, there is a risk of injury due to abrasion and crushing.

• Before lowering, make sure that there are no persons near or under the implement. Send anyone there away if necessary.

• Set the rate of drop so that a complete lowering takes at least 2 seconds.

NOTE: Changes to rate of drop are effective immediately.

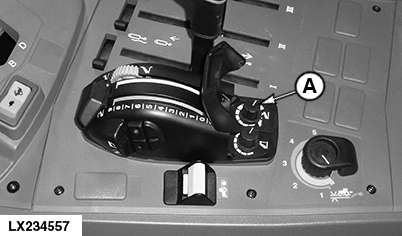

LX234557-UN-11MAR15

1. Adjust the rate of drop with control knob (A).

2. The rate of drop is dependent on:

   • Setting of control knob (A).
   • Weight of attached implement.



   The heavier the implement, the faster the rate of drop, and the lighter the implement, the slower the rate of drop.
