Rear Hitch - Adjust the Raise Rate

CAUTION: Risk of injury due to implements being raised too quickly.

If implements are being raised too quickly, there is a risk of injury due to abrasion and crushing.

• Before raising, make sure that there are no persons near or under the implement. Send anyone there away if necessary.

• Set the raise rate so that a complete raising takes at least 5 seconds.

NOTE: Changes to raise rate are immediate.

LX1056690
LX1056690-UN-04JUL12

LX1056695
LX1056695-UN-10JUL12

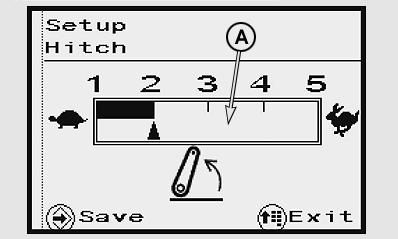

The rate at which mounted implements are raised is set via the digital display.

  1. Press menu button (4) until the page for the raise rate appears.

  2. Press confirm button (1).

  3. In input box (A), select the desired raise rate using arrow buttons (2) or (3).

  4. Save selection using confirm button (1).

  5. To exit, press menu button (4).

OULXA64,00044A3-19-20170711
