Rear Hitch - Remote Control

These switches allow operating the hitch from outside the cab. For safety reasons, the hitch rises and drops at a slower rate. The height and depth values are ignored.

▴ Push upper switch - Raise implement

▾ Push lower switch - Lower implement

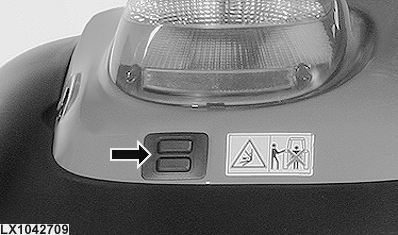

LX1042709-UN-04JUL07

NOTE: Once the remote control has been activated, the hitch is prevented from moving accidentally. To prepare the hitch for operation again, either:

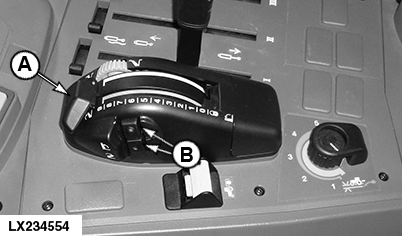

LX234554-UN-11MAR15

• move depth control (A) to the position that corresponds to the position of draft links,
• move control lever (A) to one of the end positions, or
• press switches (B) for the hitch.
