Adjust Lift Links

IMPORTANT: Avoid damage due to insufficient clearances.

When the hitch is raised, the lift link and the draft link may come into contact with the tires or other tractor components.

Check clearances and stops:

• To widen the clearance to the tires, mount the lift links in the front bore of the draft links.
• When draft link are raised, always lock the stabilizer bars (hydraulic or mechanical).

The raising height as well as the operating depth can be increased with the lift links.

Increase raising height ==> shorten lift link

Increase operating depth ==> extend lift link

NOTE: Short lift link means:

Short raising parth ==> greatest lifting force.

Long lift link means:

Long raising path ==> lesser lifting force..

IMPORTANT: Avoid damage due to wrong adjustment length.

When setting the lift links, faulty settings and incorrect operation may occur.

Observe the following when setting the lift link:

LX1035443-UN-13JAN05

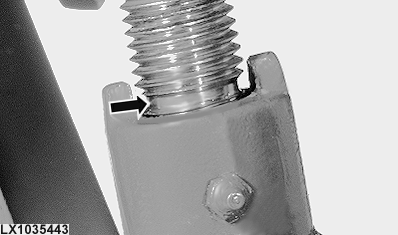

Groove in thread

• Specified dimensions not exceeded upwards/downwards
• Grooves in the thread indicate the maximum permitted setting.
• The threads must not be unscrewed out of the receiver.

Align implement

LX234713-UN-26JUN15

LX1035442-UN-13JAN05

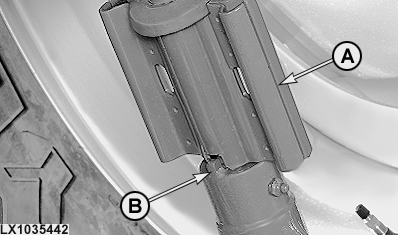

A - Adjusting Handle

B - Lock

1. Push adjusting handle (A) out of lock (B) and set to the length desired.

2. To retain, push adjusting handle (A) down and into latch (B).

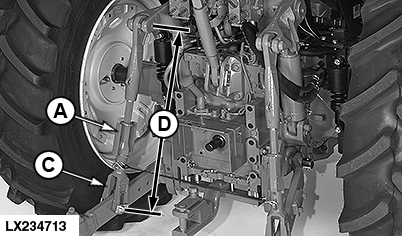

   For lift links without adjusting handle, remove the lift link from the draft link and screw yoke end (C) in or out.

   Length of Links	CAT2 and CAT3
   Minimum length ..............	830 mm (32.7 in.)
   Maximum length ..............	990 mm (39.0 in.)

   NOTE: The lift link dimensions quoted above are with lift links locked in draft links (no vertical float).

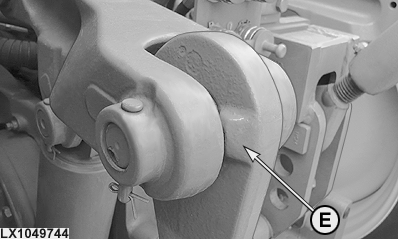

3. When engaging the lift links in the lift arms, make sure that stops (E) are always at the rear as shown.


   LX1049744-UN-03MAY10

   E - Stops (2 on Each Lift Link)

---
