Check the Fuel Filters - 4-Cylinder Engines

If water or sediment deposits have settled in filter, proceed as follows:

LX234658
LX234658-UN-16APR15

A - Drain Screw

  1. Open drain screw (A) by 3/4 of a turn. Retighten the screw as soon as water and sediment deposits have drained out.

  2. Turn key in key switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 120 seconds.

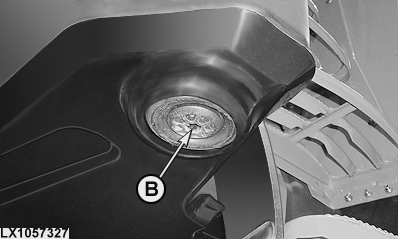

If water was present in the fuel filter, then use a 1/2-inch square-section key to unscrew the drain plug (B) under the fuel tank by turning it once. After draining off any water and sediment deposits, tighten drain plug until finger-tight.

LX1057327
LX1057327-UN-25OCT13
