Tighten Front-Wheel Bolts, on Vehicles with Front-Wheel Drive Axles - 6145M

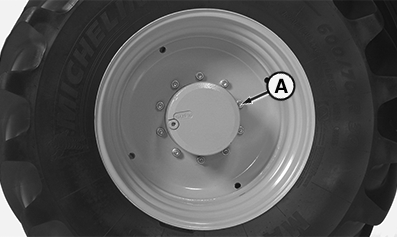

LX315086-UN-17JAN18

Front Wheel with 10-Hole Circle and Round Wheel Dish

A - 480 N·m (355 lb-ft)

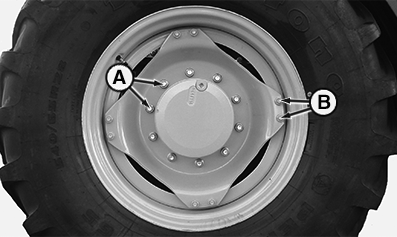

LX315088-UN-17JAN18

Front Wheel with 10-Bolt Circle and Square Wheel Dish

A - 480 N·m (355 lb-ft)

B - 210 N·m (155 lb-ft)

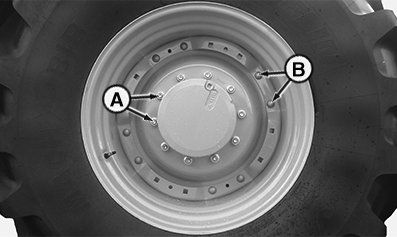

LX315092-UN-17JAN18

Front Wheel with 10-Hole Circle and Waffle Rim

A - 480 N·m (355 lb-ft)

B - Gold Bolts — 280 N·m (205 lb-ft)

B - Gray-Blue Bolts — 265 N·m (195 lb-ft)
