Two-Piece Front Axle — Adjust the Fenders (Version 2)

IMPORTANT: For information on differentiating between the fender versions, see “Two-Piece Front Axle - Distinction between Fender (Version 1) and (Version 2)” in this section.

LX267134
LX267134-UN-28APR17

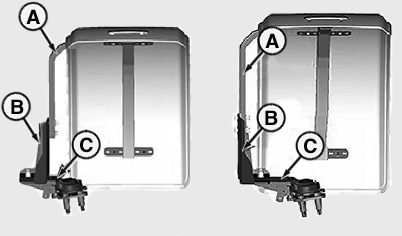

“OUT” / “IN” Position

A - Fender Base Support

B - Console

C - Base Plate

The fenders may be adjusted individually. Several adjusting positions are possible. Tilt, width and height of the fenders can be adjusted depending on tire size.

To adjust the fenders, perform the following steps:

  1. Raise front of tractor so that the front-wheel drive axle can pivot freely.

    LX1031619
    LX1031619-UN-31MAY06


  2. Turn steering wheel fully in both directions and pivot the axle in both directions to stop to determine the most suitable fender mounting position.

  3. Adjust fender position so that the minimum clearances (see illustration) are met. There should not be any contact with the tractor frame.

    LX1033894
    LX1033894-UN-11MAR04

    A = 40 mm (1.57 in.)1, B = 60 mm (2.36 in.)1

    IMPORTANT: If snow chains are installed on the tires, the minimum distance from the tires to the fenders (side wall to fender and running surface to fender) must be 100 mm (3.9 in.).


  4. Adjust fender stop to prevent it from being seized at the edges with steering wheel fully turned and axle pivoting. Make sure that the stop contacts the tractor frame before reaching the fender.

  5. Also adjust the steering stop to make sure that the wheel or the fender does not come into contact with tractor components (e.g. the tank).

    LX1031620
    LX1031620-UN-24APR06

    IMPORTANT: Also refer to the following in this section:

    • “Notes on Adjusting the Fenders”

    • “Notes on Adjusting the Steering Stop” of the corresponding front axle model.


  6. Tighten the screws to the following torque values:

    LX1057505
    LX1057505-UN-26MAY15

    Console Shown in “IN” Position

    Screws

    Torque valves

    (A) - Fender base support to console ..............

    90 N·m (65 lb·ft)

    (B) - Console to base plate ..............

    160 N·m (120 lb·ft)

    (C) - Base plate to knuckle housing ..............

    170 N·m (125 lb-ft)


1 Europe only. In non-European countries, a minimum clearance of 25 mm (1,0 in.) is recommended.

OULXA64,0004704-19-20171117
