Two-Piece Front Axle - Distinction between Fender (Version 1) and (Version 2)

On the two-piece front axle, different versions of fenders can be installed.

LX315047-UN-16NOV17

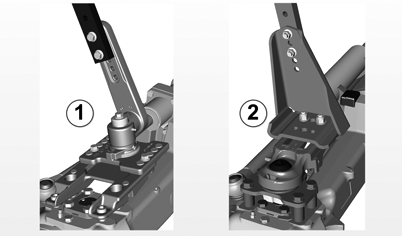

Fender (Version 1) / (Version 2)

The difference can be seen in the design of the brackets and mounts for the fenders (see illustration).

This results in differences in the adjustment of the fenders and steering stops.

For information on adjusting the fenders and steering stops, see this Section:

• Fenders (version 1)

  - “Two-Piece Front Axle — Notes on Adjusting the Fenders (Version 1)”

  - “Two-Piece Front Axle — Notes on Adjusting the Steering Stop (Version 1)”

• Fenders (version 2)

  - “Two-Piece Front Axle — Notes on Adjusting the Fenders (Version 2)”

  - “Two-Piece Front Axle — Notes on Adjusting the Steering Stop (Version 2)”
