DEF Tank Vent - Check Filter

CAUTION: Avoid contact with eyes. In case of contact, immediately flush eyes with large amounts of water for a minimum of 15 minutes. Further information can be found in the safety data sheet.

IMPORTANT: When DEF comes into contact with any materials, immediately clean with water.

NOTE: When operating in a very dusty environment, check the tank vent filter occasionally for encrustation.

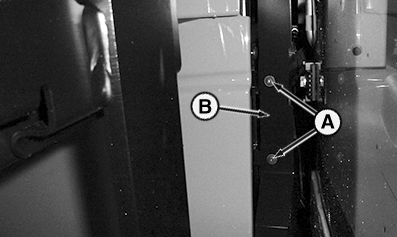

  1. If equipped, remove screws (A) and cover (B).

    LX329213
    LX329213-UN-17JAN18

    A - Screws

    B - Cover

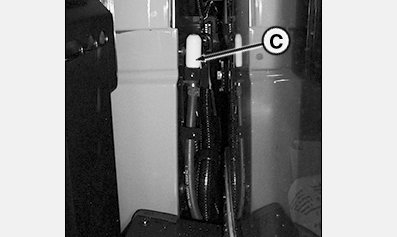

  2. Loosen filter (C) from bracket and move out to the side.

    LX329214
    LX329214-UN-17JAN18

    C - DEF Tank Vent Filter


  3. Check filter (C) for encrustations. If necessary, unscrew and replace filter.

    NOTE: Screw in new filter finger-tight.

  4. For installation, reverse the removal procedure.

OULXA64,00047D3-19-20180123
