Transmission and Hydraulic Oil
RG30204-UN-08MAR18

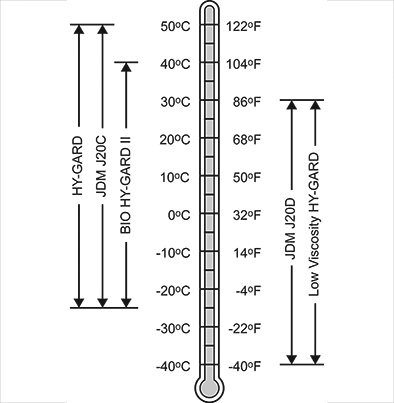

Oils for Air Temperature Ranges
Use oil with a viscosity based on the expected air temperature range during the period between oil changes.
The following oils are preferred:
- John Deere Hy-Gard™
- John Deere Low Viscosity Hy-Gard™
Other oils can be used if they meet one of the following specifications:
- John Deere Standard JDM J20C
- John Deere Standard JDM J20D
Use John Deere Bio Hy-Gard™ II oil when a biodegradable fluid is required.1
IMPORTANT: Valid for tractors with IVT:
Only John Deere HY-GARD™ or John Deere BIO-HY-GARD II™ may be used.
Do NOT use HY-GARD LOW VISCOSITY. Do NOT use oils that meet John Deere specification JDM J20D.
|
Hy-Gard is a trademark of Deere & Company Bio Hy-Gard is a trademark of Deere & Company 1 Bio Hy-Gard II meets or exceeds the minimum biodegradability of 80% within 21 days according to CEC-L-33-T-82 test method. Bio Hy-Gard II should not be mixed with mineral oils, because this reduces the biodegradability and makes proper oil recycling impossible. |
OULXA64,0004937,DX,ANTI-19-20180528 |
