Front-Wheel Drive Axle - Final Drives with Brake, Oil Change

TS281
TS281-UN-15APR13

CAUTION: Danger of injury from hot components or hot, pressurized oil.

Touching hot surfaces can cause injury.

Avoid contact with hot surfaces or hot oil.

Perform oil change while the oil is warm (approx. 40 °C; 103 °F).

Slowly unscrew drain/level screw plug.

NOTE: Replace oil in the final drives with brakes after the first 100 hours, the first 500 hours and thereafter every 500 hours of operation.

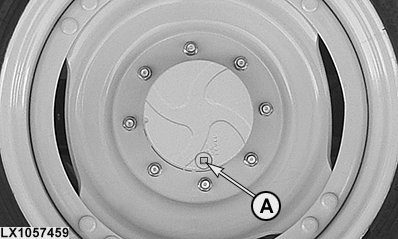

  1. Turn wheel so that drain screw (A) is at the bottom. Remove screw, and drain the oil.

    LX1057459
    LX1057459-UN-21AUG14

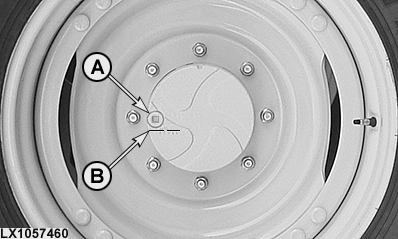

  2. Turn the wheel through 90° so that the line marked OIL LEVEL (B) is horizontal, and fill with fresh oil at drain screw bore. Oil must be level with drain screw bore.

    LX1057460
    LX1057460-UN-21AUG14


  3. Put a new O-ring on the drain screw.

  4. Screw in the drain screw and tighten it to 90 N•m (66 lb-ft).

Oil to be used

Hy-Gard™ Transmission/Hydraulic Oil. See also Section 80.

Capacity

See “Capacity” of relevant tractor in Section 145.

OULXA64,00049B4-19-20180913
