Tighten Wheel Bolts of the Tear Wheels - Rack-and-Pinion Axles, Hub Diameter 86 mm / 92 mm

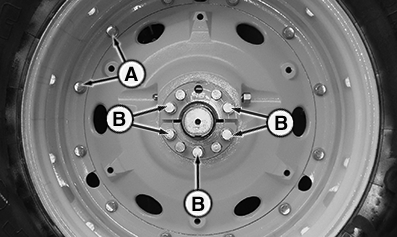

LX315172-UN-04JUN18

Cast Dish to Cast Hub

A - 550 N·m (405 lb·ft)

B - 550 N·m (405 lb·ft)

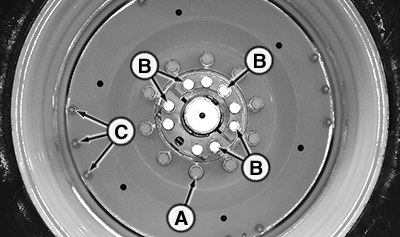

LX315174-UN-29MAY18

Steel Dish to Cast Hub

A - 600 N·m (445 lb·ft)

B - 550 N·m (405 lb·ft)

C - Gold Bolts 280 N·m (205 lb-ft)

C - Gray-Blue Bolts 265 N·m (195 lb-ft)
