Notes on Rear Wheels - Rack-and-Pinion Axles, Hub Diameter 79 mm

CAUTION: Danger of injury from improperly tightened or missing wheel bolts or wheel nuts!

Improperly tightened wheel bolts and wheel nuts can become loose and be lost while the vehicle is driving. There is a risk of fatal personal injuries and high property damage due to loss of control over the vehicle.

• Use only wheel bolts and wheel nuts that belong to the wheel.

• Never use different wheel bolts and wheel nuts.

• Never operate machine with loose wheel bolts and wheel nuts.

• Tighten all wheel bolts and wheel nuts only to the specified torque.

• Before starting to drive, check that all wheel bolts and wheel nuts are mounted and firmly seated.

IMPORTANT: The distance between the side wall of the tire and the fender should not be less than 40 mm (1.57 in.)¹.

The distance between the running surface (edge) of the tire and the fender must not be less than 60 mm (2.36 in.)².

Werden Schneeketten auf die Reifen montiert, muss der Mindestabstand von den Reifen zu den Kotflügeln (axial und radial) 100 mm (3.94 in) betragen.

IMPORTANT: Do not use clamp-on style dual wheels when the tractor is equipped with steel wheels and flanged axle.

IMPORTANT: Retighten bolts to the specified torque after 3 operating hours and 10 operating hours.

Tighten wheel bolts (A) to (C) - cast wheel

LX315121-UN-17APR18

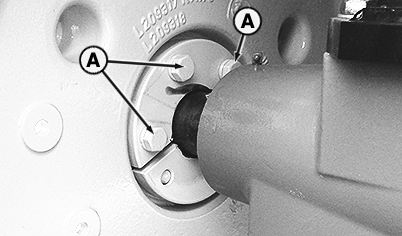

Pinion Hub Half to Cast Dish

LX315120-UN-17APR18

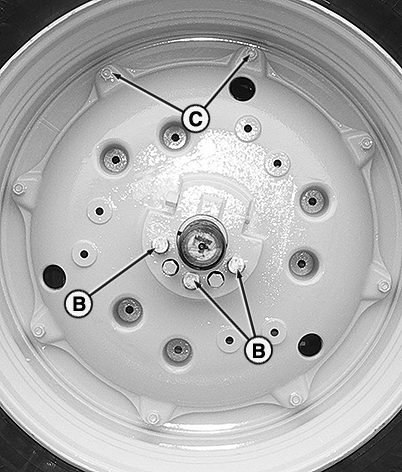

Cast Wheel

A - Pinion Hub Half to Cast Dish - 220 N·m (160 lb-ft)

B - Wheel Hub on Hub Half — 400 N·m (300 lb-ft)

C - Rim on Cast Dish — 220 N·m (160 lb-ft)

Tighten wheel bolts (A) to (D) - Steel wheel

LX315125-UN-17APR18

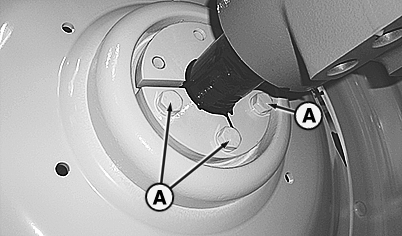

Pinion Hub Half to Steel Dish

LX315124-UN-17APR18

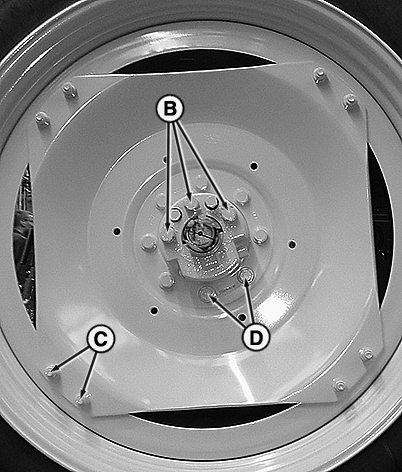

Steel Wheel

A - Pinion Hub Half to Steel Dish — 220 N·m (160 lb-ft)

B - Wheel Hub on Hub Half — 400 N·m (300 lb-ft)

C - Rim on Steel Dish — 210 N·m (155 lb-ft)

D - Steel Dish on Wheel Hub — 400 N·m (300 lb-ft)
