Tread Widths for Rear Wheels with Rims for 16 Positions (Heavy-Duty Type) - Flanged Axle (6145M)

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

LX1053416-UN-16MAR12

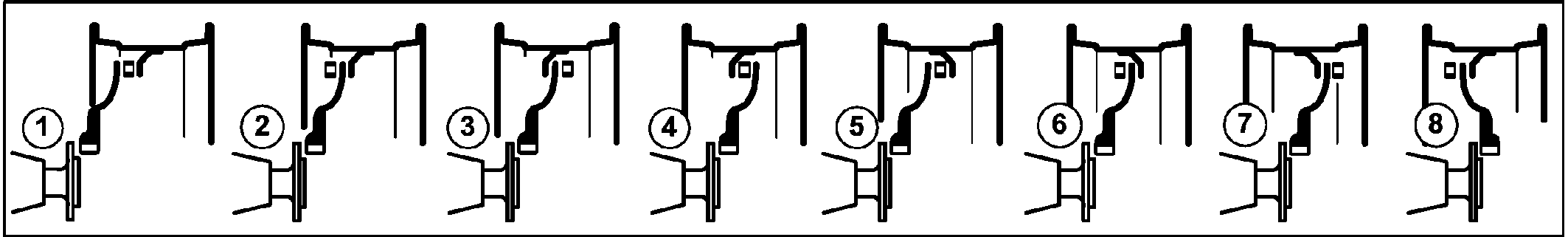

Tread Widths for Rear Wheels with Rims for 16 Positions (Heavy-Duty Type) / Positions 1 to 8

		Tread width on delivery	Rear Wheel Tread Widths Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
520/85R42	cm	193	204*	201	196	193	183	180	175	172
	in.	75.8	80.2*	79.0	77.0	75.8	72.1	70.9	69.0	67.8
** Installation in this position is not allowed.

LX1053417-UN-16MAR12

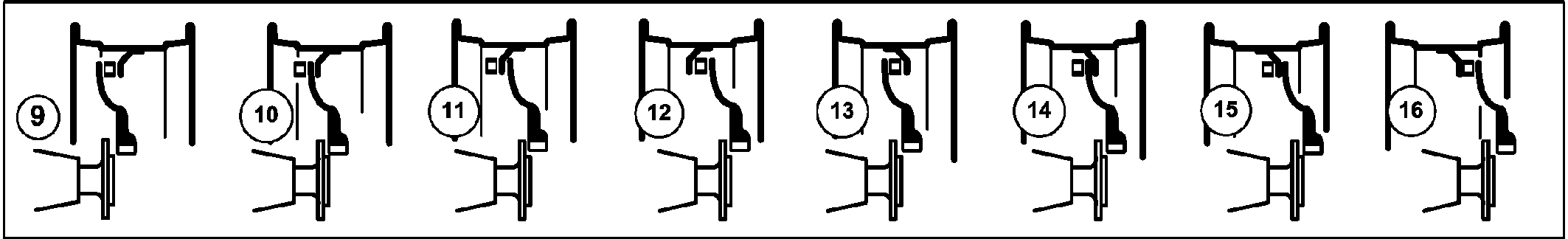

Tread Widths for Rear Wheels with Rims for 16 Positions (Heavy-Duty Type) / Positions 9 to 16

		Tread width on delivery	Rear Wheel Tread Widths Arrangement of rim and wheel dish
Tires:			9	10	11	12	13	14	15	16
520/85R42	cm	193	164	—**	—**	—**	—**	—**	—**	—**
	in.	75.8	64.4
** Installation in this position is not allowed.
