Steel Adjustable Wheels in Combination with Adjustable Rear Axles

CAUTION: Risk of personal injury and property damage due to loss of control via the tractor.

The overuse of wheels leads to damage and as a result to dangerous driving situations.

Avoid overstressing and use only permissible wheel mounting.

When using a steel adjustable wheel on an adjustable rear axle, mount the rim and wheel dish as shown.

Use only the wheels and hub positions shown. Deviating wheel mounting is not permitted.

LX364412-UN-02JUL19

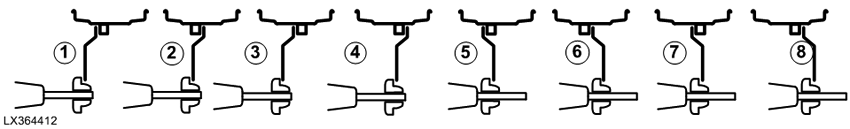

Steel adjustable wheels for 8 positions / for wheel mounting 5 to 8, the position of the wheel hub must be observed

LX364413-UN-02JUL19

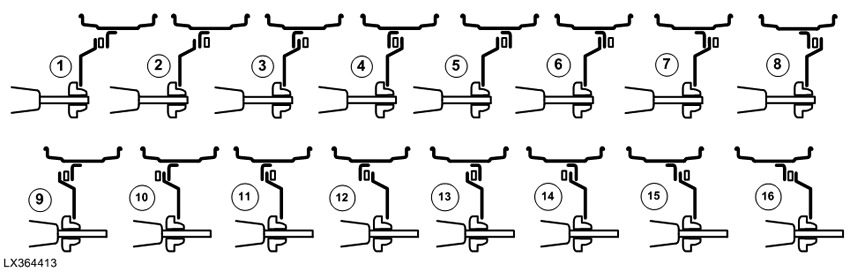

Steel adjustment rims for 16 positions / for wheel mounting 9 to 16, the position of the wheel hub must be observed
