Three-Piece Front Axle (Version 2) — Tread Widths for Front Wheels with Rims for 8 Positions - 6145M

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Three-Piece Front Axle (Version 2) — Overview of Axle Category and Axle Type”
2. “Three-Piece Front Axle (Version 2) — Adjust the Fixed Fenders and Steering Stop”
3. “Prevent Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

LX1057503-UN-13MAY15

Three-Piece Front Axle

LX315046-UN-16NOV17

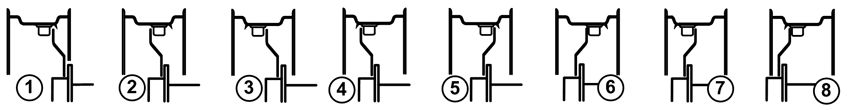

		Tread width on delivery	Front wheel tread widths Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
12.4R28	cm	184	234	224	206	196	194	184	166	156
	in	72.3	92.1	88.0	81.3	77.2	76.4	72.3	65.5	61.4
13.6R28	cm	184	234	224	206	196	194	184	166	156
	in	72.3	92.1	88.0	81.3	77.2	76.4	72.3	65.5	61.4
14.9R28	cm	184	234	224	206	196	194	184	166	156
	in	72.3	92.1	88.0	81.3	77.2	76.4	72.3	65.5	61.4
16.9R28	cm	182	222	214	212	203	182	174	172	163
	in	71.7	87.4	84.1	83.3	80.0	71.7	68.3	67.6	64.3
16.9R28 -R2	cm	184	234	224	206	196	194	184	166	156*
	in	72.3	92.1	88.0	81.3	77.2	76.4	72.3	65.5	61.4*
320/85R28	cm	182	222	214	212	204	182	174	172	164
	in	71.8	87.6	84.3	83.5	80.2	71.8	68.5	67.7	64.4
380/70R28	cm	181	232	221	204	194	192	181	164	154
	in	71.4	91.3	87.2	80.4	76.3	75.5	71.4	64.6	60.6
380/85R28	cm	181	232	221	204	194	192	181	164	154
	in	71.4	91.3	87.2	80.4	76.3	75.5	71.4	64.6	60.6
420/70R28	cm	181	232	221	204	194	192	181	164	154
	in	71.4	91.3	87.2	80.4	76.3	75.5	71.4	64.6	60.6
420/85R28	cm	181	232	221	204	194	192	181	164	154*
	in	71.3	91.2	87.1	80.3	76.2	75.4	71.3	64.6	60.5*
420/85R28 -R2	cm	181	232	221	204	194	192	181	164	154*
	in	71.3	91.2	87.1	80.3	76.2	75.4	71.3	64.6	60.5*
480/65R28	cm	181	232	221	204	194	192	181	164	154*
	in	71.4	91.3	87.2	80.4	76.3	75.5	71.4	64.6	60.6*
480/70R28	cm	181	232	221	204	194	192	181	164	154*
	in	71.3	91.2	87.1	80.3	76.2	75.4	71.3	64.6	60.5*
540/65R28	cm	181	232	221	204	194	192	181	164*	154*
	in	71.3	91.2	87.1	80.3	76.2	75.4	71.3	64.6*	60.5*
* Tread width and adjustment of the steering stop is possible only with steering stop AL225331. See also “Three-Piece Front Axle (Version 2) — Adjust the Pivoting Fenders and Steering Stop” for the relevant front axle.
