Two-Piece Front Axle — Tread Widths for Front Wheels with Rims for 2 Positions - 6130M

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Two-Piece Front Axle — Adjust the Fenders and Steering Stop - Front Axle 730, 733 and 735”
2. “Prevent Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

LX1057502-UN-26MAY15

Two-Piece Front Axle

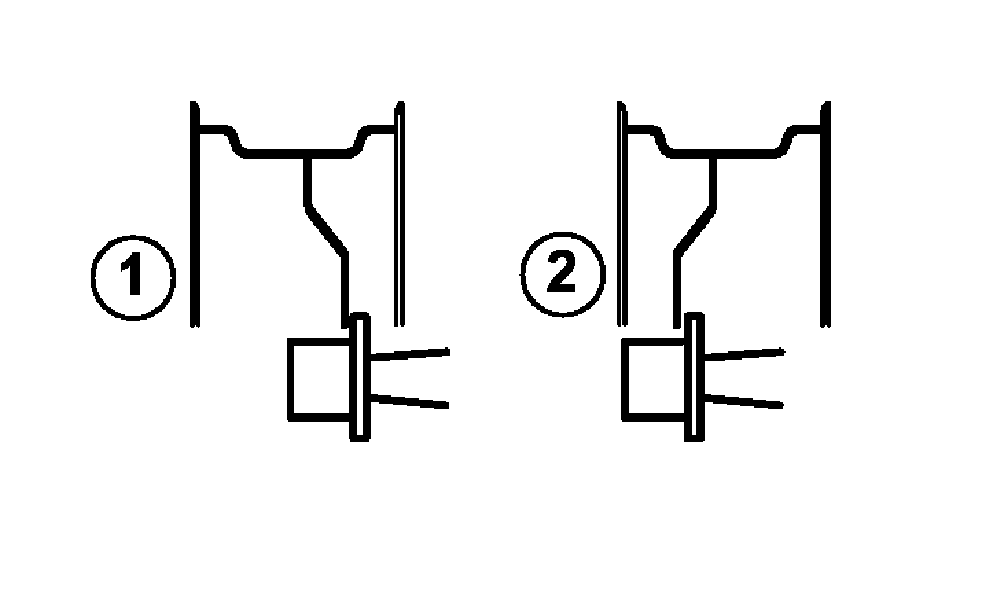

LX1053400-UN-07MAR12

		Tread widths on delivery	Front wheel tread widths Arrangement of rim and wheel dish					Tread widths on delivery	Front wheel tread widths Arrangement of rim and wheel dish
Tires:			1	2		Tires:			1	2
10.5/80-18 -R4	cm	176	176	159		380/85R24	cm	181	181	153
	in	69.2	69.2	62.6			in	71.4	71.4	60.1
11.2R28	cm	183	183	155		380/85R28	cm	181	181	153
	in	72.2	72.2	60.9			in	71.3	71.3	60.1
12.4R24	cm	183	183	155		400/80R24 -R4	cm	181	181	153
	in	72.2	72.2	60.9			in	71.4	71.4	60.1
12.4R28	cm	183	183	155		400/80R28 -R4	cm	181	181	153
	in	72.2	72.2	60.9			in	71.3	71.3	60.1
13.6R24	cm	183	183	155		420/65R24 -R4	cm	181	181	153
	in	72.2	72.2	60.9			in	71.4	71.4	60.1
13.6R28	cm	183	183	155		420/70R24	cm	181	181	153
	in	72.2	72.2	60.9			in	71.4	71.4	60.1
14.9R24	cm	183	183	155		420/70R28	cm	181	181	153
	in	72.2	72.2	60.9			in	71.3	71.3	60.1
14.9R28	cm	183	183	155		420/85R24	cm	181	181	152
	in	72.2	72.2	60.9			in	71.3	71.3	60.0
16.9R24	cm	183	183	155		440/65R24	cm	181	181	153
	in	72.2	72.2	60.9			in	71.4	71.4	60.1
280/85R28	cm	181	181	153		440/80R24 -R4	cm	181	181	152
	in	71.4	71.4	60.2			in	71.3	71.3	60.0
320/85R28	cm	181	181	153		480/65R24	cm	181	181	153
	in	71.4	71.4	60.2			in	71.4	71.4	60.1
340/85R24	cm	181	181	153		480/65R28	cm	181	181	—**
	in	71.4	71.4	60.1			in	71.3	71.3
340/85R28	cm	181	181	153		480/70R24	cm	181	181	—**
	in	71.3	71.3	60.1			in	71.3	71.3
380/70R24	cm	181	181	153		540/65R24	cm	181	181	—**
	in	71.4	71.4	60.1			in	71.3	71.3
380/70R28	cm	181	181	153
	in	71.3	71.3	60.1
** Installation in this position is not allowed
