Fuse and Relay of Electrical Starting Aid

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

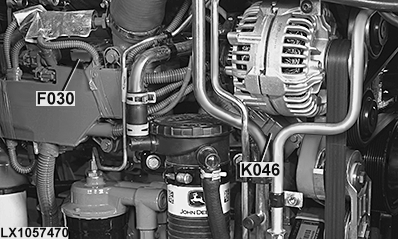

Fuse (F030) and relay (K046) are located under a cover on the right side of the engine.

LX1057470
LX1057470-UN-22AUG14

  1. Open the hood and remove the cover.

  2. Check the 70-amp fuse (F030) and the 70-amp relay (K046), and replace if necessary.

  3. Install cover and close hood.
