Sway Blocks, Category 2 (if Equipped)

IMPORTANT: The draft links must NOT come into contact with the tires at any point in their operating range (from lowest position to highest).

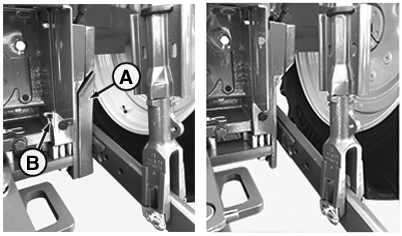

The sway blocks (A) limit the side sway of the draft link during work and transport.

LX364393-UN-15MAY19

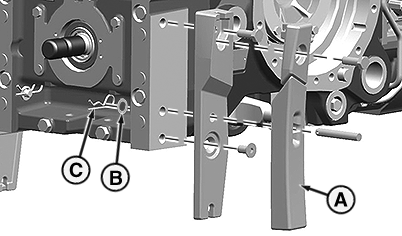

Sway Blocks, Installed/Removed

LX364394-UN-21MAY19

A - Sway Block

B - Washer

C - Cotter Pin

Sway blocks must be fitted when working with attachments which exactly follow the line of the tractor.

If the implement (plow, disk harrow, etc.) should have side sway in the working position, remove the cotter pins (C) and take off the blocks.

In this case, the draft links have side sway in working position; in transport position they are locked.

If necessary, compensate for existing sway with washers (B) during replacement.
