After the First 4 and 8 Hours of Operation

Tighten axle bolts - adjustable front axle, type A

LX1056762-UN-19OCT12

A - 400 Nm (295 lb-ft)

Tighten axle bolts - adjustable front axle, type B

LX1053274-UN-21SEP11

A - 600 Nm (445 lb-ft)

Tighten wheel bolts of front wheels, with adjustable front axle type A

LX1053273-UN-14SEP11

A - 250 Nm (185 lb-ft)

Tighten wheel bolts of front wheels, with adjustable front axle type B

LX1053273-UN-14SEP11

A - 310 N·m (230 lb-ft)

Tighten wheel bolts of front wheels, with front-wheel drive axles - 6110M to 6130M

LX315085-UN-17JAN18

Front Wheel with 8-Hole Circle and Round Wheel Dish

A - 300 N·m (220 lb-ft)

LX315087-UN-16JAN18

Front Wheel with 8-Hole Circle and Square Wheel Dish

A - 300 N·m (220 lb-ft)

B - 210 N·m (155 lb-ft)

LX315091-UN-17JAN18

Front Wheel with 8-Hole Circle and Waffle Rim

A - 300 N·m (220 lb-ft)

B - Gold Bolts — 280 N·m (205 lb-ft)

B - Gray-Blue Bolts — 265 N·m (195 lb-ft)

Tighten Front-Wheel Bolts, on Vehicles with Front-Wheel Drive Axles - 6145M

LX315086-UN-17JAN18

Front Wheel with 10-Hole Circle and Round Wheel Dish

A - 480 N·m (355 lb-ft)

LX315088-UN-17JAN18

Front Wheel with 10-Hole Circle and Square Wheel Dish

A - 480 N·m (355 lb-ft)

B - 210 N·m (155 lb-ft)

LX315092-UN-17JAN18

Front Wheel with 10-Hole Circle and Waffle Rim

A - 480 N·m (355 lb-ft)

B - Gold Bolts — 280 N·m (205 lb-ft)

B - Gray-Blue Bolts — 265 N·m (195 lb-ft)

Tighten Wheel Bolts of the Rear Wheels, with Flanged Axles

LX1056771-UN-12NOV12

Rear Wheel with 8-Hole Circle and Round Wheel Dish

A - 500 N·m (370 lb-ft)

B - 210 N·m (155 lb-ft)

LX1053441-UN-21MAR12

Rear Wheel with 8-Hole Circle and Square Wheel Dish

A - 500 N·m (370 lb-ft)

B - 210 N·m (155 lb-ft)

LX315166-UN-15MAY18

Rear Wheel with 8-Bolt Circle and Waffle Rim

A - 500 N·m (370 lb-ft)

B - Gold Bolts — 280 N·m (205 lb-ft)

B - Gray-Blue Bolts — 265 N·m (195 lb-ft)

Tighten wheel bolts of the rear wheels, with rack-and-pinion axles - 6110M to 6130M

Tighten wheel bolts (A) to (C) - cast wheel

LX315121-UN-17APR18

Pinion Hub Half to Cast Dish

A - Pinion Hub Half to Cast Dish - 220 N·m (160 lb-ft)

LX315120-UN-17APR18

Cast Wheel

B - Wheel Hub on Hub Half — 400 N·m (300 lb-ft)

C - Rim on Cast Dish — 210 N·m (155 lb-ft)

Tighten wheel bolts (A) to (D) - Steel wheel

LX315125-UN-17APR18

Pinion Hub Half to Steel Dish

A - Pinion Hub Half to Steel Dish — 220 N·m (160 lb-ft)

LX315124-UN-17APR18

Steel Wheel

B - Wheel Hub on Hub Half — 400 N·m (300 lb-ft)

C - Rim on Steel Dish — 210 N·m (155 lb-ft)

D - Rim on Wheel Hub — 400 N·m (300 lb-ft)

Tighten wheel bolts of the rear wheels, with rack-and-pinion axles - 6145M

LX315172-UN-04JUN18

Cast Dish to Cast Hub

A - 550 N·m (405 lb-ft)

B - 550 N·m (405 lb-ft)

LX315174-UN-29MAY18

Steel Dish to Cast Hub

A - 600 N·m (445 lb-ft)

B - 550 N·m (405 lb-ft)

C - Gold Bolts — 280 N·m (205 lb-ft)

C - Gray-Blue Bolts — 265 N·m (195 lb-ft)

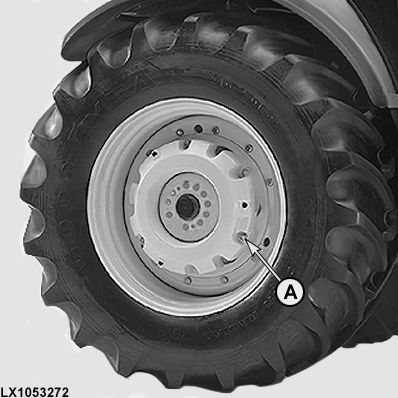

Tighten screws of wheel weights

LX1053272-UN-19SEP11

• M16 cap screws, 310 N·m (230 lb.-ft.)
• M20 cap screws, 610 N·m (450 lb-ft)

See "Change Wheel Weights Safely" in Section 60.
