Three-Piece Front Axle (Version 1) — Overview of Axle Category and Axle Type

LX1057503-UN-13MAY15

Three-Piece Front Axle

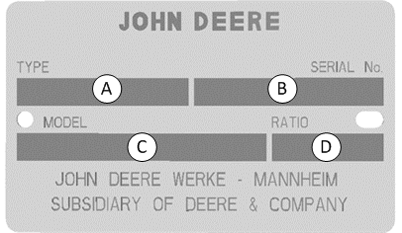

LX245281-UN-19MAY15

A - Axle Type/Design

B - Axle Serial Number

C - Spare Part Number

D - Transmission Ratio

The product identification number plate is located on the axle housing.

The axle type is stated on the product identification number plate.

Depending on version, transmission ratio and tractor model, the following axles may be installed.

Before working on the axle, check what type it is so that you can determine what category it belongs to.

Axle category	Three-piece front axle (version 1)
	735 (M40LD)	740 (M40)	745 (M40HD)	750 (M50LD)
Axle type/version (see type plate of front axle)	735/208	740/206	745/213	750/208
	735/209	740/207	745/214	750/209
	735/254	740/208	745/215	750/255
	735/255	740/252	745/255	750/256
		740/253	745/256	750/306
		740/303	745/308	750/316
		740/304	745/307	750/307
		740/305		750/317
		740/306
