Transmission/Hydraulic Oil Filters, Replace

TS281
TS281-UN-15APR13

CAUTION: Danger of injury from hot hydraulic system components or hot oil.

Touching hot surfaces of the hydraulic system, accessories, or hoses and leads can cause personal injuries.

Avoid contact with hot surfaces or hot oil.

Change the oil filter while the oil is warm approx. 40 °C; 103 °F) .

IMPORTANT: Always replace both filters at the same time.

NOTE: Replace transmission and hydraulic oil filter after the first 100, after the first 500 hours, and then every 500 hours of operation.

  1. Unscrew filter elements.

    LX1045688
    LX1045688-UN-26NOV10

    Hydraulic Oil Filter

    LX1057562
    LX1057562-UN-12JUL12

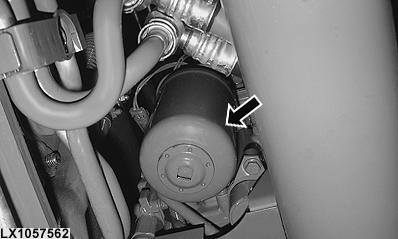

    Transmission Oil Filter


  2. Coat seal rings of new filters with grease and screw in the filters.

    Use only genuine John Deere filters.

  3. Run the engine briefly and operate several hydraulic functions. Shut off engine.

  4. Wait for 10 to 15 minutes, then check oil level. It should be between the marks on the sight-glass. If not, correct oil level.
