Mechanical Multi-Function Lever with Front-Loader Dampening

CAUTION: When the front loader is not in use, the multi-function lever must be locked. To do this, turn locking ring (G) and check that the multi-function lever cannot be moved. If this is not done, the front loader may be inadvertently actuated while the tractor is in motion, which could lead to serious accidents.

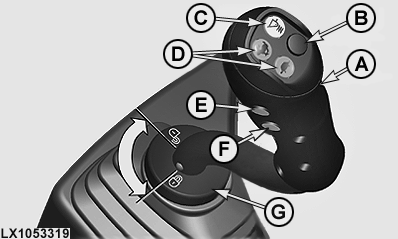

LX1053319-UN-10OCT11

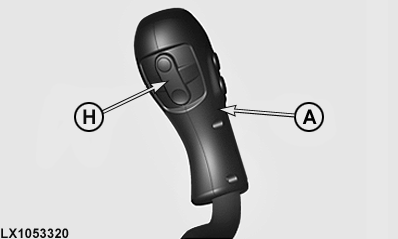

LX1053320-UN-10OCT11

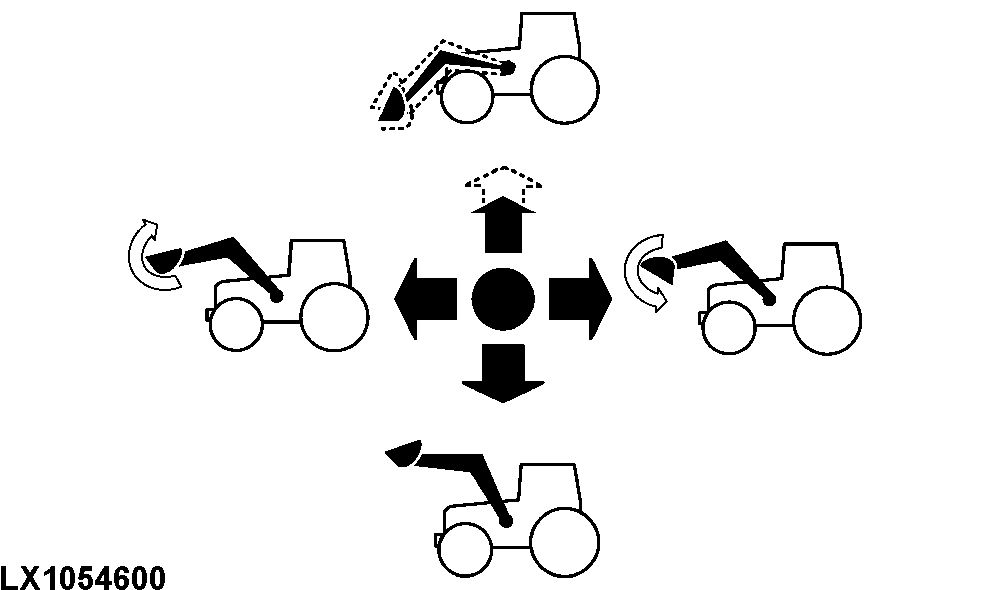

LX1054600-UN-10OCT11

A - Multi-Function Lever

B - Not Used

C - Button for Activating Front-Loader Dampening

D - Gear-Shift Buttons

E - Button, Diverter Valve 1 on Front Implement (not for North America)

F - Button, Diverter Valve 2 on Front Implement (not for North America)

G - Locking Ring (Transport Lock)

H - Raise/Lower Rocker Switch

Basic functions:

• Turn locking ring to right = Lock
• Turn locking ring to left = Unlock
• Lever to rear = Raise front loader
• Lever to front as far as perceptible resistance = Lower front loader
• Lever to front beyond perceptible resistance (detent) = Front loader in float position
• Lever to left = bucket rollback (curl)
• Lever to right = bucket tips down

Advanced functions and programming:

Multi-function lever (A) permits two control valves (SCVs) to be operated at the same time.

A third control valve is actuated via rocker switch (H), permitting an additional function to be controlled.

Pressing buttons (E) and (F) actuates the diverter valves of the implement, permitting additional functions to be controlled.

NOTE: For more information, see implement operator's manual. Front-loader dampening must be activated before it can be used.

Front-loader dampening is switched on and off at button (C). When front-loader dampening is switched on, the LED in button (C) lights up.

Gear-shift buttons (D) allow the gears at the transmission to be shifted. On tractors with CommandQuad™ PLUS transmissions, switching the gears is only possible if the transmission is operated in the groups “A”, “B”, “C” or “D”.

Activate and de-activate front-loader dampening

1. Hold button (C) and then switch on the ignition.
2. Hold button (C) for another 5 seconds at least until the LED in the button starts to flash.
3. Release the button and press it again within 5 seconds to enter the programming mode.
4. The current programming of front-loader dampening is shown as follows:

   LED off all the time ==> Front-loader dampening de-activated

   LED on all the time ==> Front-loader dampening activated

5. Press button (C) to activate or de-activate front-loader dampening.
6. To exit the programming mode and save the setting, press any button on the multi-function lever or switch off the ignition.

NOTE: Front-loader dampening remains switched off every time the engine is started.
