Center Link

IMPORTANT: Damage due to too little clearance between installed and hitched devices.

When the hitch is raised, the device may come into contact with the cab tractor components.

Carry out a trial attachment and check clearances with attached or hitched device in every position.

Observe following settings for this:

• Center link length

• Maximum lift height

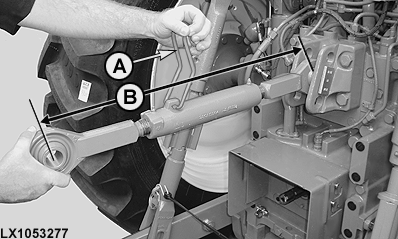

1. Adjust center link length to the required length by turning adjusting handle (A).


   LX1053277-UN-21SEP11

   A - Adjusting Handle

   B - Length

   Center link length	CAT2	CAT3
   Minimum length ..............	640 mm (25.2 in.)	660 mm (26.0 in.)
   Maximum length ..............	820 mm (32.3 in.)	845 mm (33.3 in.)

   IMPORTANT: Damage due to wrong adjustment length.

   When setting the center link lengths, faulty settings and incorrect operation may occur.

   • Do not exceed specified dimensions downwards/upwards.

   • Grooves in the threads indicate the maximum permitted setting.

   • The threads must not be unscrewed out of the receiver.

---




2. After adjusting, push handle down again over center link.

3. Insert attaching pin through implement mast and center link, and secure.
