Transmission/Hydraulic System - Check Oil Level

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

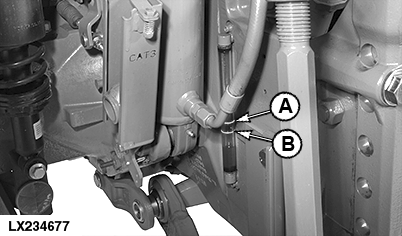

LX234677
LX234677-UN-20APR15

A - Max. Mark

B - Min. Mark

  1. Park tractor so that it is level.

  2. Engage park lock.

  3. Lower draft links, front loader, front implements, and other implements that draw oil from the transmission.

  4. Oil level should be between marks (A) and (B) on the sight-glass.

  5. If necessary, refill with oil of correct viscosity at filler neck (C). See Section 80E.

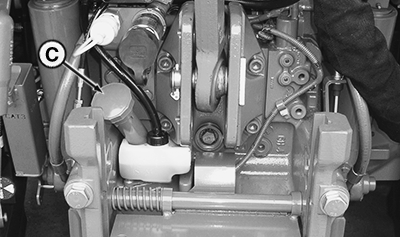

    LX314979
    LX314979-UN-02AUG17

    C - Filler Neck

OULXA64,EU,4Zyl,00036C3-19-20180918
