Signal Socket According to ISO Standard 11786

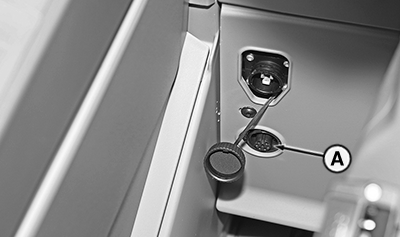

The 7-terminal signal socket (A) is protected by a 10-amp fuse.

LX314978-UN-02AUG17

Rear Panel

Terminal	Wire color	Description
1	Red	GPS ground speed
2	Brown	Wheel speed
3	Orange	Rear PTO speed
4	Yellow	Implement switch*
5	—	—
6	Red	Power supply when ignition ON 10 A, 120 W at 12 V
7	Black	Ground
*or hitch status (implement in working position or not). Query configurable.

NOTE: The dealer can use address BLC 057 (switched output for signal socket (pin 4)) to configure where the information for pin 4 is sourced. From the implement switch or the rear hitch.

By default, the implement switch is configured here.
