Tread Widths for Rear Wheels with Rims for 2 Positions - Flanged Axle (6120M)

IMPORTANT: Comply with instructions on tread adjustment for rear wheels with rims for 2 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

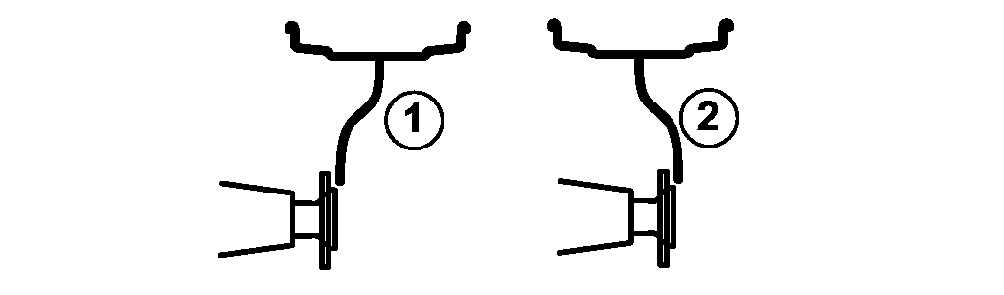

LX1053403-UN-12MAR12

		Tread width on delivery	Rear Wheel Tread Widths Arrangement of rim and wheel dish					Tread width on delivery	Rear Wheel Tread Widths Arrangement of rim and wheel dish
Tires:			1	2		Tires:			1	2
16.9R30	cm	181	181	—**		460/85R38	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
16.9R34	cm	181	181	—**		480/70R34	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
16.9R38	cm	181	181	—**		480/70R38	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
18.4R30	cm	181	181	—**		480/80R30 -R4	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
18.4R34	cm	181	181	—**		480/80R34 -R4	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
18.4R38	cm	181	181	—**		480/80R38 -R4	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
420/85R30	cm	181	181	—**		520/70R34	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
420/85R34	cm	181	181	—**		520/70R38	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
420/85R38	cm	181	181	—**		540/65R34	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
460/85R30	cm	181	181	—**		540/65R38	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
460/85R34	cm	181	181	—**		600/65R38	cm	181	181	—**
	in.	71.3	71.3				in.	71.3	71.3
** Installation in this position is not allowed
