Tread Widths for Rear Wheels with Rims for 2 Positions - Rack-and-Pinion Axle, Hub Diameter 79 mm (6110M)

IMPORTANT: Comply with tread adjustment instructions, and tighten wheel bolts. See Notes on Rear Wheels - Rack-and-Pinion Axles, Hub Diameter 79 mm.

IMPORTANT: After adjusting tread, check that the wheels can turn freely.

Do NOT let tires come into contact with draft links or lift links. The gap between lift links and tires can be increased by installing the lift links in the front holes of the draft links.

When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.

If there is still contact with the draft links or lift links despite all these measures, tread width must be increased.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

LX1056800-UN-29OCT12

Tread Widths on Rear Wheels - Rack-and-Pinion Axle

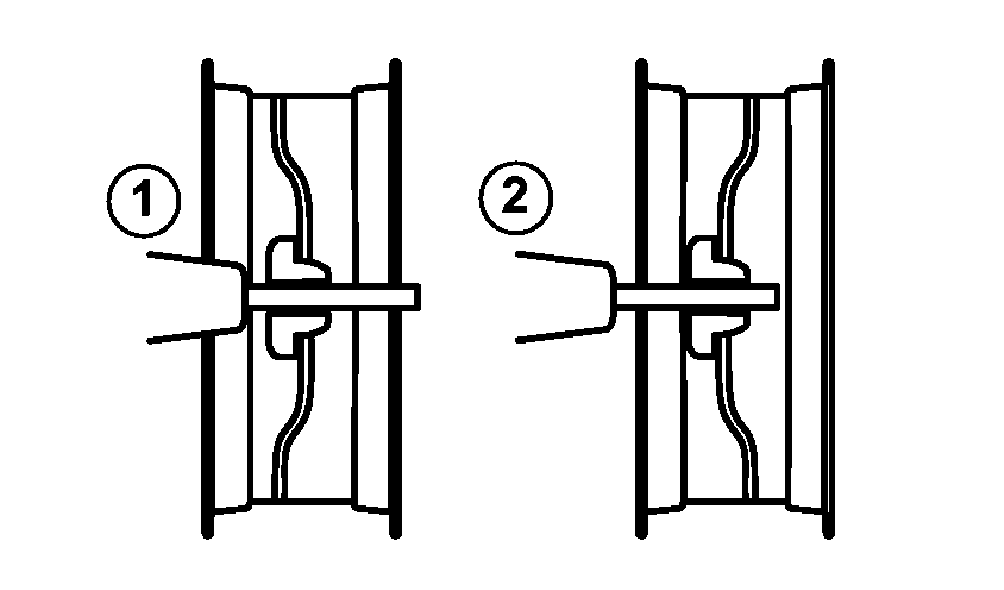

		Tread Widths (Rear Wheels with Cast Wheel) Arrangement of rim and wheel dish
			Short rack-and-pinion axles	Medium rack-and-pinion axles
Tires:		Minimum (1)	Maximum (2)	Maximum (2)
16.9R34	cm	175	228	255
	in.	68.9	89.9	100.6
16.9R38	cm	175	228	255
	in.	68.9	89.9	100.6
18.4R34	cm	175	228	255
	in.	68.9	89.9	100.6
18.4R38	cm	175	228	255
	in.	68.9	89.9	100.6
420/85R34	cm	175	228	255
	in.	68.9	89.9	100.6
420/85R38	cm	175	228	255
	in.	68.9	89.9	100.6
460/85R34	cm	175	228	255
	in.	68.9	89.9	100.6
460/85R38	cm	175	228	255
	in.	68.9	89.9	100.6
480/70R34	cm	175	228	255
	in.	68.9	89.9	100.6
480/70R38	cm	175	228	255
	in.	68.9	89.9	100.6
520/70R34	cm	175	228	255
	in.	68.9	89.9	100.6
520/70R38	cm	175	228	255
	in.	68.9	89.9	100.6
540/65R34	cm	175	228	255
	in.	68.9	89.9	100.6
540/65R38	cm	175	228	255
	in.	68.9	89.9	100.6
600/65R38	cm	175	228	255
	in.	68.9	89.9	100.6
