Hook-Type Center Link

IMPORTANT: Use only correct balls!

This center link is intended for category III balls.

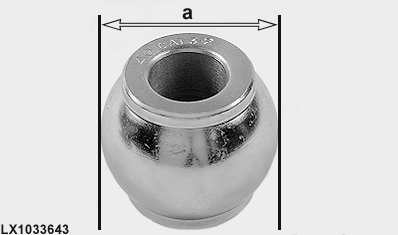

LX1033643-UN-17MAY04

Category	Ball diameter (a)
III	60 mm (2.4 in.)

Hook operation

With control element (A), the coupler hook can be operated manually or by cable.

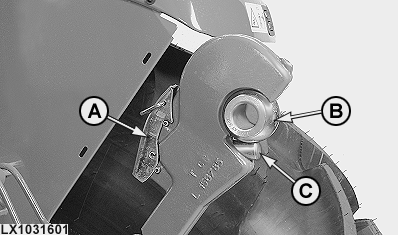

LX1031601-UN-16SEP04

Coupler Hook - Manual Operation

LX1031602-UN-16SEP04

Coupler Hook - Cable Operation

A - Control Console

B - Ball

C - Pins

IMPORTANT: Make sure that the coupler hook is correctly latched:

• Control part (A) has to be flush against coupler hook.

• Ball (B) should have no noticeable play.

• Bolt (C) should cover the ball.

Valid for coupler hook with cable operation:

After hitching up, check the routing of the cable so that an accidental opening by excessive slack or catching by high vegetation or branches can be avoided.
