Lift Links - Adjust for Vertical Float

Depending on the position of the guide plates, draft links can be adjusted to allow for vertical float, for the transport position¹ or to lock out float.

LX1049780-UN-23JUL10

LX364623-UN-17FEB20

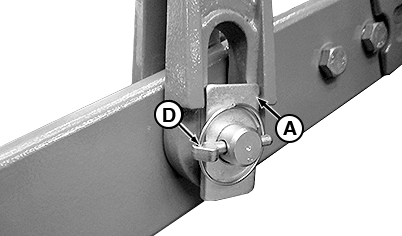

Adjustment for Vertical Float

LX364624-UN-17FEB20

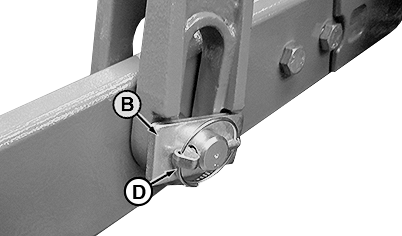

Adjustment for No Float

LX364625-UN-17FEB20

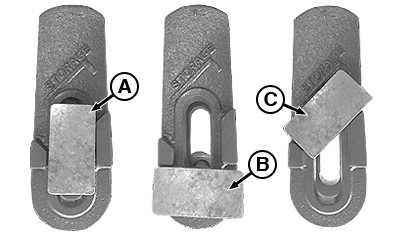

A - Vertical Float

B - No-Float Position

C - Transport Position (If Equipped)

D - Snap Ring

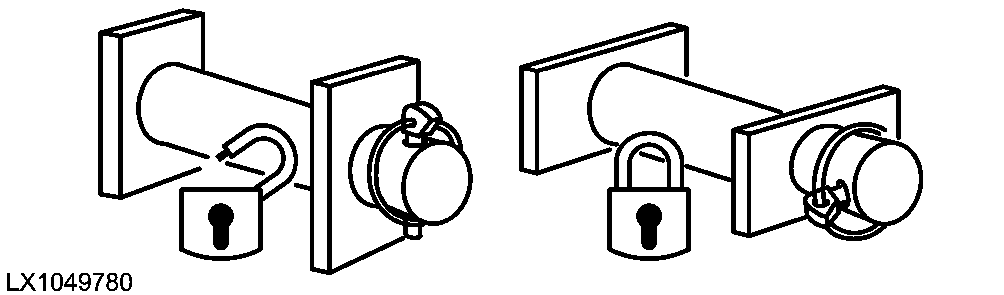

IMPORTANT: Make sure that the snap ring (D) has been pulled through the bore of the pin properly, refer to illustration.
