Draft Links — Adjust Spreading Dimension

1. Drive tractor to the center of the implement.

2. Lift flap (A) and lever (B).

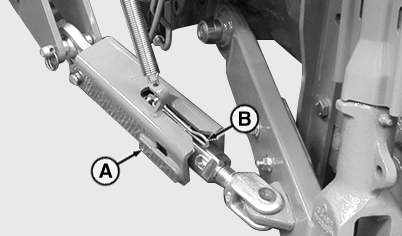

   LX267101-UN-19APR17

   A - Flap

   B - Lever

   Flap (A) does not necessarily need to be lifted for the setting.

---




3. Use spindle (C) to set the the spreading dimension of the draft links correspondingly for the implement.

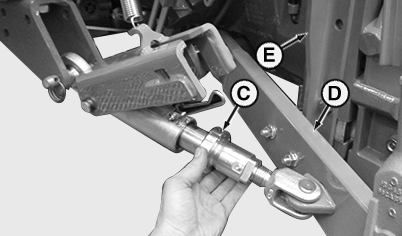

   LX267102-UN-19APR17

   C - Spindle

   D - Draft Link

   E - Sway Block

   IMPORTANT: The spreading dimension must be large enough to prevent the draft links (D) from getting caught on sway blocks (E). If not, mechanical damage may occur.

   Spreading dimension measured between center of balls
   Category 2 / 3N ..............	870 mm (34.5 in.)
   Category 3 ..............	1010 mm (39.8 in.)

---




4. To secure, position lever (B) in the groove of the spindle (C).

5. Lower flap (A).

6. Finally, adjust spacer (G).

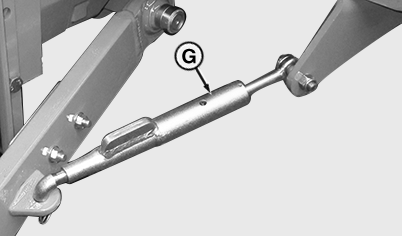

   LX267114-UN-19APR17

   G - Spacer

---

IMPORTANT: If telescopic draft links are equipped and conversion from category 3N to category 3 is being performed, the position of the wear plates must be changed from inside to outside. See "Telescopic Draft Links - Convert Category 3 and 3N" on the following pages.
