Front Hitch - Center Link

IMPORTANT: Before starting up, make sure that a raised implement cannot make contact with the tractor. In this case, pay attention to the settings for center link length and maximum raising height.

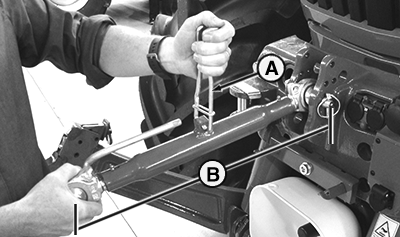

Length of center link can be adjusted using adjusting handle (A). Hold the center link as shown and adjust to the required length by turning adjusting handle.

LX315021-UN-23OCT17

A - Adjusting Handle

B - Length

Center link length	Minimum length	Maximum length
CAT2 ..............	500 mm (19.7 in.)	760 mm (29.9 in.)
CAT3 ..............	530 mm (20.9 in.)	730 mm (28.7 in.)
Hydraulic center link length
CAT2 ..............	565 mm (22.2 in.)	710 mm (28.0 in.)
CAT3 ..............	565 mm (22.2 in.)	710 mm (28.0 in.)

DO NOT deviate from the specified dimensions. Grooves in the thread indicate the maximum permitted setting. The threads must not be unscrewed any further out of the receiver. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.
