Front Hitch - Center Link Positions

The center link can be attached to the tractor in any one of three positions.

LX315019-UN-23OCT17

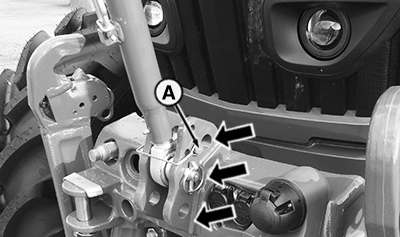

Center Link Shown without Coupler Hook

LX315020-UN-23OCT17

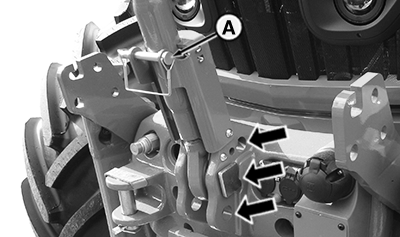

Center Link Shown with Coupler Hook

Use the uppermost position for work that requires a smaller implement tilt angle and a higher lifting force.

Use the lowest position for work that requires a larger implement tilt angle and a lower lifting force.

IMPORTANT: When the center link is not being used, position the center link as shown and secure with locking pin (A). Make sure that the safety clip of the locking pin (A) is positioned correctly.
