Front Hitch - Hook-Type Center Link

IMPORTANT: The matching ball has to be used.

This center link is intended for category III balls.

LX1033643-UN-17MAY04

Category	Ball diameter (a)
III	60 mm (2.4 in.)

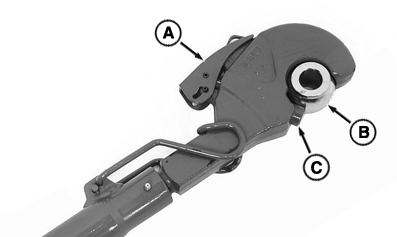

Hook operation

With control element (A), the hook can be operated manually.

LX234778-UN-30NOV15

A - Control Console

B - Ball

C - Pins

IMPORTANT: Make sure that the coupler hooks are correctly latched:

• Control part (A) has to be flush against coupler hook.

• Ball (B) should have no noticeable play.

• Bolt (C) should cover the ball.
