Operating instructions

LX1049749-UN-21MAY10

Observe angle of articulation of universal-jointed shaft.

LX1049900-UN-22FEB11

Correctly align the yokes of the joints to each other.

1 - Z-shaped Layout

2 - W-shaped layout

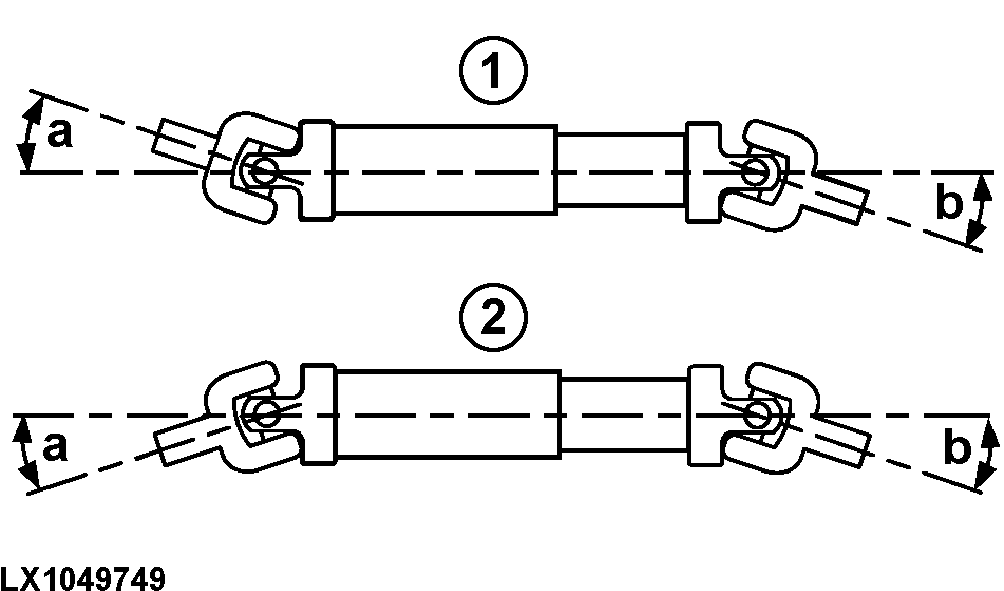

As far as possible, angles (a) and (b) at the universal joints should be the same at both ends of the universal-jointed shaft.

In applications where this is not the case (e.g. sharp turns with PTO engaged), it is recommended to use a continuous-velocity driveshaft.

NOTE: The two schematic drawings do not show any shields on the universal-jointed shaft. A shield is mandatory when using universal-jointed shafts.

IMPORTANT: Only operating conditions described in the Operator's Manuals of the various implements are permitted. This applies particularly to maximum permissible angle of articulation, to the use of freewheel clutches and overload clutches, and to the prescribed amount of overlap when shaped pipes are pushed together.

IMPORTANT: Before using a PTO-driven implement, ensure that the universal-jointed shaft is lubricated regularly. Comply with instructions in Operator's Manual provided by manufacturer.

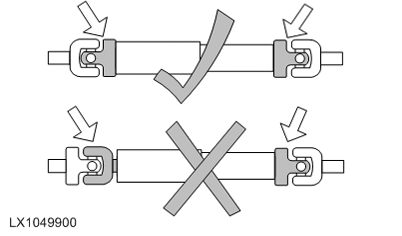

IMPORTANT: On multi-component telescoping universal-jointed shafts, the yokes at each end must be aligned as shown. The yokes at each end must NOT be at 90° to one another (see arrows in illustration on the right).
