CAT II Drawbar - Tighten the Screws

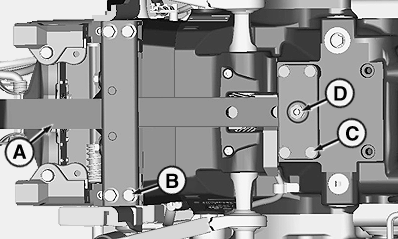

CAT II drawbar - standard version

LX364408-UN-26JUN19

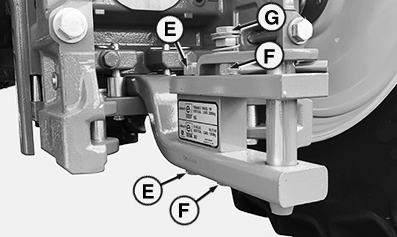

CAT II drawbar - standard version

LX364404-UN-27JUN19

CAT II drawbar - standard version

A - Drawbar

B - Screws (4 used), 310 N·m (230 lb-ft)

C - Screws (4 used), 310 N·m (230 lb-ft)

D - Stopper Plug (1 used), 310 N·m (230 lb-ft)

E - Bolt and Nut, 520 N·m (385 lb-ft)

F - Bolt and Nut, 375 N·m (275 lb-ft)

G - Nut, 70 N·m (50 lb-ft)

CAT II drawbar - heavy-duty type

LX364408-UN-26JUN19

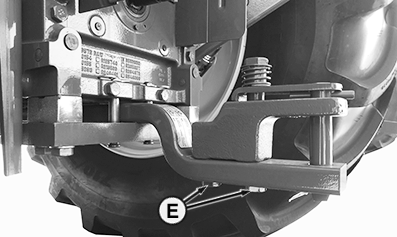

CAT II drawbar - heavy-duty type

LX364405-UN-26JUN19

CAT II drawbar - heavy-duty type

A - Drawbar

B - Screws, M16 (4 used), 310 N·m (230 lb-ft)

B - Screws, M20 (4 used), 490 N·m (360 lb-ft)

C - Screws, M16 (4 used), 260 N·m (190 lb-ft)

C - Screws, M20 (4 used), 610 N·m (450 lb-ft)

D - Stopper Plug (1 used), 310 N·m (230 lb-ft)

E - Screws (2 used), 435 N·m 320 lb-ft)
