Front PTO - Change Oil Filter (If Equipped)

TS281-UN-15APR13

CAUTION: Danger of injury from hot components or hot oil.

Touching hot surfaces, accessories, or hoses and leads can cause injury.

Avoid contact with hot surfaces or hot oil.

Change the oil filter while the oil is warm approx. 40 °C; 103 °F) .

1.
   LX1045673-UN-26OCT10

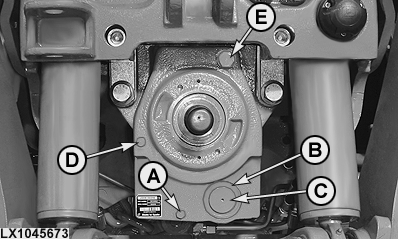

   Take out oil drain screw (A) and drain the oil into a suitable container.

   NOTE: If oil smells burnt or has a very dark appearance, it needs to be changed. If chips or similar things are noticed during a filter change, the PTO clutch needs to be repaired by your authorized dealer.

---




2. Remove screws (D) and (E).

3. Remove snap ring (B) and cover (C).

4. Replace the oil filter.

5. Put a new seal ring on cover (C) and make sure it is seated correctly.

6. Install cover (C) and snap ring (B).

7. Remembering to include a new seal, install the oil drain screw and tighten to 20 N·m (15 lb-ft).

8. Fill clean transmission/hydraulic oil through screw bore (E) into the PTO housing until oil comes out of screw bore (D).

9. Remembering to include a new seal, install screw (D) and tighten to 20 N·m (15 lb-ft).

10. Remembering to include a new seal, install screw (E) and tighten to 40 N·m (30 lb-ft).
