Front PTO - Change Oil (If Equipped)

TS281-UN-15APR13

CAUTION: Danger of injury from hot components or hot oil.

Touching hot surfaces, accessories, or hoses and leads can cause injury.

Avoid contact with hot surfaces or hot oil.

Perform oil change while the oil is warm (approx. 40 °C; 103 °F).

1.

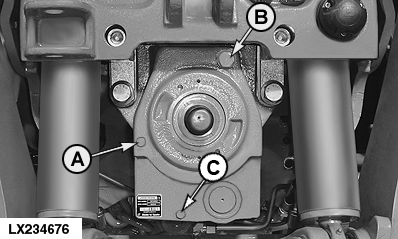

   LX234676-UN-20APR15

   Take out oil drain screw (C) and drain the oil into a suitable container.

   NOTE: If chips or similar things are noticed, the PTO clutch needs to be repaired by your authorized dealer.

   At every oil change, also change the oil filter.

---




2. Take out screws (A) and (B).

3. Remembering to include a new seal, install oil drain screw (C) and tighten to 20 N·m (15 lb.-ft.).

4. Add approx. 2,6 liters (0.69 U.S.gal.) of fresh transmission/hydraulic oil to the PTO housing at the bore for screw (B) until oil emerges from bore (A).

5. Remembering to include a new seal, install screw (A) and tighten to 20 N·m (15 lb.-ft.).

6. Remembering to include a new seal, install screw (B) and tighten to 40 N·m (30 lb.-ft.).
