Front Power Take-Off

TS276-UN-23AUG88

CAUTION: Danger to life from rotating components.

Unsuitable components, missing protective equipment, or improper handling of the PTO shaft can lead to serious accidents.

• Only connect and disconnect and carry out all other work only when the engine is at standstill.
• Switch off the engine and secure it against unauthorized starting by removing the ignition key.
• Use only suitable PTO shafts recommended by the manufacturer.
• Use only undamaged components.
• Install all guards properly before operating the PTO shaft.
• Only operate PTO shafts at permissible speeds; see also the specifications from the implement manufacturer.
• Switch the PTO on only after all persons have left the danger zone. See also Section 05 "Safety" and Section 60A "Operating Instructions" in this Operator's Manual.

CAUTION: Remove protective cover only when a PTO-driven implement is to be attached.

As soon as the implement is removed, re-install protective cap.

IMPORTANT: The counterclockwise-rotating front PTO uses a stub shaft with six splines and operates at a rated speed of 1000 rpm (engine speed 1969 rpm).

IMPORTANT: The front PTO may drive implements only if their power input never exceeds 80 kW (109 PS; 107 hp).

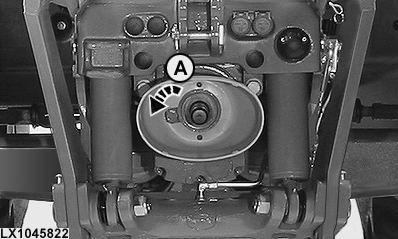

LX1045822-UN-01FEB11

A - Direction of Rotation

NOTE: If the PTO switches off automatically and cannot be restarted immediately, comply with the relevant diagnostic trouble codes. If there is high resistance to starting or if the oil is very cold, this is registered by the control software and the PTO is switched off. The PTO cannot be restarted until 30 seconds have elapsed.
