Instructions for Starting up the Air-Conditioning System

IMPORTANT: Avoid damage caused by long standstill times.

Prior to initial operation, the air conditioner compressor has to be connected.

Prior to initial operation and after long standstill periods, the start-up instructions have to be followed.

CONNECT COMPRESSOR (up to tractor serial number 912073):

1. Park tractor, stop engine, and let it cool down.

   CAUTION: Danger of severe injuries from rotating parts and hot surfaces.

   During repair and maintenance work on the engine, there is a high risk of injury if the work is performed while the engine is running or hot.

   Before starting the work, stop the engine and let it cool down adequately. Engage park lock and remove the ignition key.

2. Open the hood.

3. Connect connector (A) with the appropriate counterpart on the engine wiring harness.

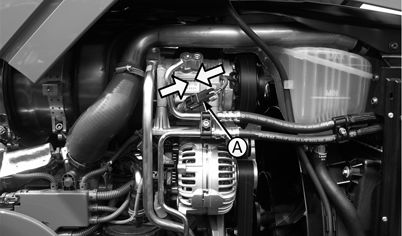

   LX299222-UN-23MAY17

   Compressor, Sample Illustration

---




4. Shut hood.

5. Follow the procedure described in the startup instructions.

STARTUP INSTRUCTIONS:

1. Start engine and let it run at low idle.

2.

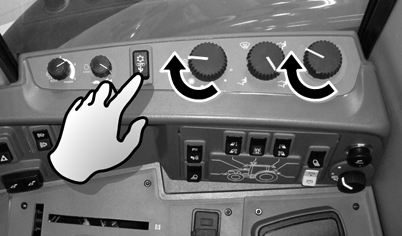

   LX299231-UN-04JUL17

   Turn on the heater for 10 minutes, and set it to max. power. Turn on blower.

---




3. Turn on air-conditioning system (cactus icon) and set blower to highest stage. Let the engine run for another 10 minutes.

4. Afterwards, the procedure is complete and the engine can be shut off.
