Ground Fault Circuit Interrupter (GFCI)

CAUTION: A short circuit to ground can lead to a fatal electric shock.

Damaged, energized cables and electric components can cause tractor components to carry live voltage without this being noticed. Touching these components can lead to a fatal electric shock. Additionally it can cause damage, e.g. a cable fire.

When a coolant heater is connected to the power network, a ground fault circuit interrupter (CFCI) has to be used.

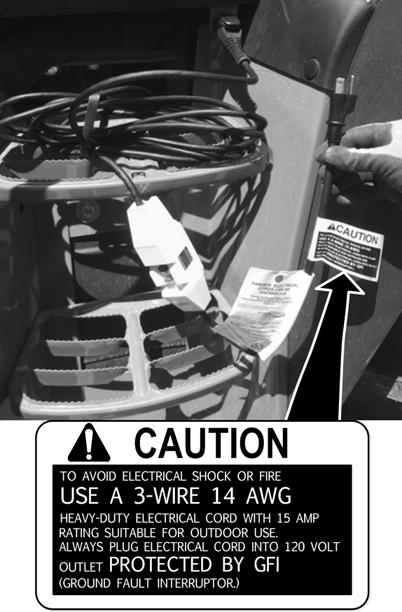

LX211137-19-09JUL14

Older Version of the Ground Fault Circuit Interrupter (GFCI) Shown - AL214182

Cold start aid:

Operation with older version - AL214182

Every time the coolant heater is switched on (regardless of timer), the reset knob at the ground fault circuit interrupter (GFCI) must be pressed before it is used again.

Operation with newer version - AL221662

On the newer version of the ground fault circuit interrupter (GFCI), no reset button needs to be pressed.

* GFCI = Ground Fault Circuit Interruptor
