Telescopic Draft Links

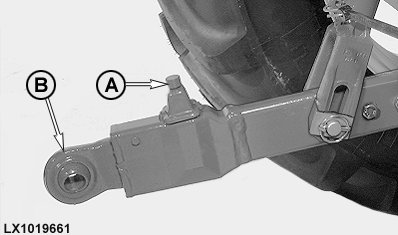

LX1019661-UN-17SEP99

These draft links are intended for Category II implements.

To facilitate hitching of implements, extend the draft links to the rear.

1. Lift lock pin (A).

2. Pull telescopic draft links (B) to the rear.

After attaching and securing implements to draft links, reverse the tractor until the lock pins snap into place.
